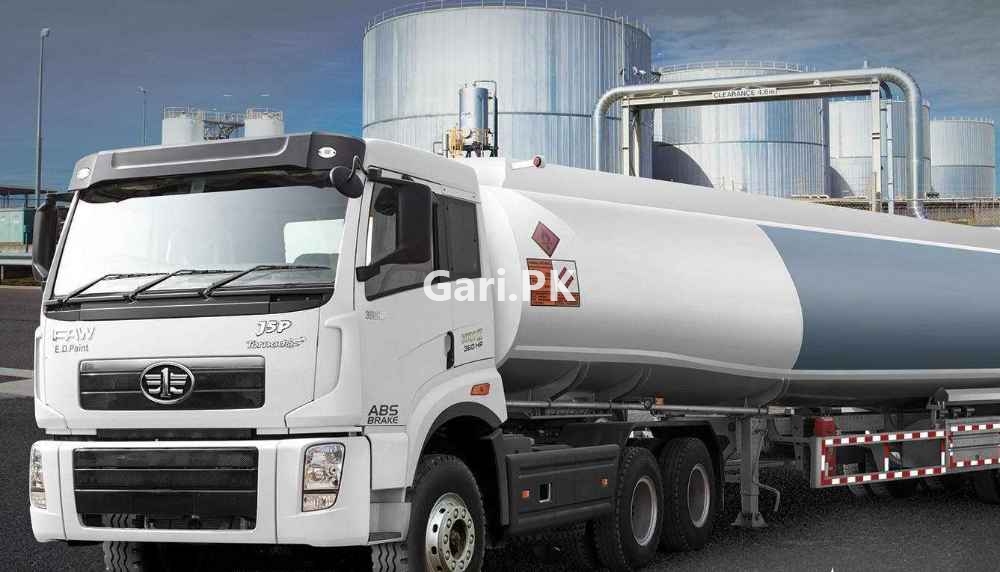

FAW J5P 360 Tornado 6x4 Prime Mover 2024 Price in Pakistan & Specs
Engine
8600 cc
Horsepower
360 hp @ 2100rpm
Torque
1500 N m @ 2100 rp
Key Specifications of FAW J5P 360 Tornado 6x4 Prime Mover
360 hp @ 2100rpm
3 Seats
Manual
Body Type
FWD
Key Features of FAW J5P 360 Tornado 6x4 Prime Mover
FAW J5P 360 Tornado 6x4 Prime Mover Colors
White
FAW J5P 360 Tornado 6x4 Prime Mover Brochure Specs and Features
See latest and brand new FAW J5P 360 Tornado 6x4 Prime Mover full specs with all the features in detail.
Mass |
|
Gross Combination weight (kg) |
58,500 |
Axle load distribution (kg) |
|
Front |
7,000 |
Rear |
26,000 |
Chassis weight (kg) |
|
Total |
8,650 |
Front |
3,460 |
Rear |
5,190 |
Performance |
|
Max.speed (km/h) |
92 |
Max. Gradeability (%) |
42 |
Fuel Tank Capacity (L) |
600 |
Engine |
|
Model |
FAWDE CA6BL2-36 Euro ll |
Type |
24 Valve Diesel In –line,6 cylinders, water cooled,turbo charged with inter cooler |
Max.OutPut (hp/rpm) |
360 hp @ 2100 rpm (267 Kw) |
Max. Torque (Nm/rpm) |
1500 N.m @ 2100 rpm |
Displacement (cc) |
8600 (8.6 litre) |
Bore |
112x145 |
Transmission |
|
Model |
Eaton fuller 9JS150T |
Type |
Synchronized 9 Forward 1 Reverse, inclusive of ‘C’ gear |
Gear Ratio |
i1 = 12.42/ i2=8.29/i3 = 6.08/ i4=4.53/i5=3.36/ i6 =2.47/i7=1.81/i8=1.35/i9=1.00 |
Reverse shift ratio |
lr =12.99 |
Clutch |
|
Type |
Eaton dry type ,single plate,diaphragm spring clutch, hydraulic controlled and air aided power operating |
Driven plate dia, |
430 (17 inches) |
Axles |
|
Front |
Reverse elliot “l” section beam |
Rear |
FAW single reduction 457 |
Ratio |
4.875 |
Differential |
Inter-axle differential lock |
Brakes |
|
Driving brake |
Full air dual circuit (Wabco – ABS) |
Parking brake |
Spring Energy Storage Type |
Auxiliary brake |
Exhaust brake |
Steering |
|
Model / type |
Recirculating ball –type steering integrated power steering |
Cab |
|
Type |
J5P new designed steel welded cab over engine,front tilting |
Suspension |
Air bag suspension |
Seating Capacity |
3 |
E.D Paint |
Metallic & solid colours |
Dimensions |
|
Overall Dimensions |
|
Length (mm) |
6,888 |
Width |
2,490 |
Height (mm) |
2,890 |
Cab width (mm) |
2490 |
Wheel base (mm) |
3300+1350 |
Ground Clearance |
260 |
Front overhang (mm) |
1418 |
Rear overhang (mm) |
820 |
Suspension |
|
Front |
Semi-elliptic multi-leaf springs |
Rear |
FAW 6-rod tandem axle suspension “V” configuration upper torque rods trunnion-mounted inverted semi-elliptic multi.leaf springs |
Wheel |
|
Tyre size |
11.00-20/ Radial |
No.of tyres |
11. |
Turnins Radius (m) |
7.7 |
Frame |
|
Type |
Side rails, puching & riveted construction with inner reinforcement |
Main rail section |
320x90x8.5 |
Electrical & lights |
|
Type |
Earth return system,negative earthed |
Battery (V/Ah) |
2 x 12v / 150 |
Generator |
1500 W |
FAW J5P 360 Tornado 6x4 Prime Mover Specifications
| Kerb Weight | - | No of Doors | 2 doors |
| Overall Height | 2890 mm / 9'6" feet | Overall Length | 6888 mm / 22'8" feet |
| Overall Width | 2490 mm / 8'3" feet | Wheel Base | 4650 mm / 15'4" feet |
| Ground Clearance | 260 mm / 0'11" feet |
| Cylinder Configuration | In lIne | Displacement | 8600 cc |
| Engine Power | 360 hp @ 2100rpm | Fuel System | water cooled, turbo charged |
| Torque | 1500 N m @ 2100 rp | Valve Mechanism | 24 Valves |
| Valves per Cylinder | - | Compression Ratio | - |
| Assembly | Imported | Warranty | 2 Years 60000 Kms |
| No of Cylinders | 6 | Fuel Grade | - |
| CO2 Emission | Euro II | Bore/stroke (mm) | 112x145 |
| Minimum Turning Radius | 7.7 m | Steering Type | Recirculating ball type steering integra |
| Power Assisted | - | Steering Switch | - |
| Tire / Tyre Size | 11-00-20 | Wheel Size | 20 in |
| PCD | mm | Wheel Type |
| Mileage City | 0 KM/LITER | Mileage Highway | KM/LITER |
| Fuel Tank Capacity | 600 L |
| Gearbox | 9-speed |
| Suspension | Front: Semi elliptic multi leaf springs, Rear: Semi elliptic multi leaf springs | City driveability (20-80 kmph) | - |
| Top Speed | 92 KM/H | Drive Modes | - |
| Parking Sensors | - | Acceleration 0-100kmph | - |
| Headlights | - | Day Time Running Lights (DRL) | - |
| Brakes | Driving Brake, Parking Brake, Auxiliary Brake | Braking (100-0 kmph) | - |
| Braking (80-0 kmph) | - |
| Drive Type | Front/Four wheel drive | Drive Setup | Driver right |
| Brochure | Download | Waiting Time (Own) | - |
| Release Date | 29 December 2021 | Category | Work Related |
| Outer Door handle finish | - | Door Visor | |
| Multi Information Combination | - | Seats, Armrests & Door Lining Inserts | - |
| Interior Color | - | Insight Door Handles | - |
| AC Vent Knobs | - | Hand Brake Knob | - |
| Antenna | - | Inner Lights | - |
| Supervision Cluster / Driver Multi Information System | - |
| Sound System / Speakers | - | USB Charger | - |
| Infotainment / Funtainment System / Audio System | - | ||
| Axels | - | Licensed Weight | - |
