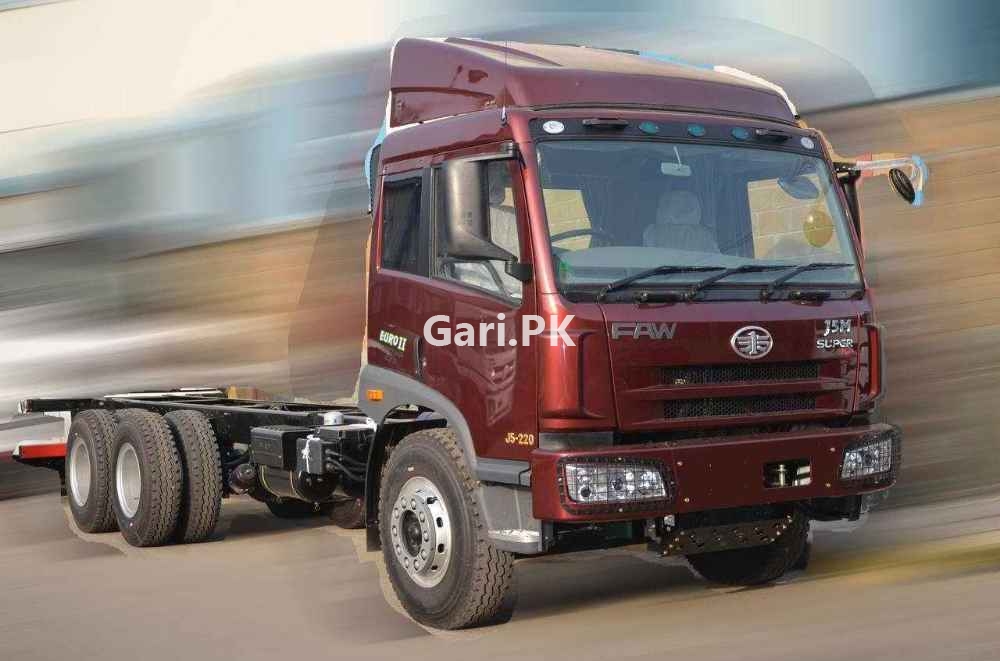

FAW J5M 220 Super Plus 6x2 Prime Mover 2024 Price in Pakistan & Specs
Engine
6557 cc
Horsepower
220 @ 2300
Torque
770 @ 1400
Key Specifications of FAW J5M 220 Super Plus 6x2 Prime Mover
220 @ 2300
2 Seats
Manual
Body Type
FWD
Key Features of FAW J5M 220 Super Plus 6x2 Prime Mover
FAW J5M 220 Super Plus 6x2 Prime Mover Colors
blue
White
FAW J5M 220 Super Plus 6x2 Prime Mover Brochure Specs and Features
See latest and brand new FAW J5M 220 Super Plus 6x2 Prime Mover full specs with all the features in detail.
Mass |
|
Permissible G.C.W (kg) |
45,000 |
Axle Load Distribution (Kg) |
|
Front |
6.500 |
Rear |
22.000 |
Chassis Weight (Kg) |
|
Total |
7,600 |
Front |
3,610 |
Rear |
3,990 |
Performance |
|
Max.Speed (km/h) |
90 |
Max.Gradeability (%) |
32 |
Fuel Tank Capacity (L) |
400 |
Engine |
|
Model |
FAWDE CA6DF2D-22 |
Type |
Diesel, 4-stroke in-line, 6 Cylinders, Water cooled, turbo charged with inter cooler |
Max.Output (Hp/rpm) |
220 @ 2300 |
Max. Torque (Nm/rpm) |
770 @ 1400 |
Displacement (cc) |
6557 (6.5 Litre) |
Bore |
110x115 |
Emission Standard |
Euro ll |
Transmission |
|
Model |
FAW CA7TB1OOM |
Type |
7 forward 1 Reverse (inclusive of ‘C’ Gear |
Gear Ratio |
i1=10.120/ i2=7.270/ i3=4.310/ i4= 2.718/ i5=1.826/ i6=1.342/ i7=1.000 |
Reverse Shift Ratio |
lr = 9.397 |
Clutch |
|
Type |
Eaton dry type,single plate,diaphragm spring clutch, hydraulic controlled and air aided Power Operating |
Driven Plate Dia. |
Ø395 (15.5) |
Axles |
|
Front |
Reverse Elliot “l” Section Beam |
Rear |
FAW Single reduction |
Ratio |
5.28 (7/37) |
Brakes |
|
Driving Brake |
Full air dual Circuit brake |
Parking brake |
Spring energy storage type |
Auxiliary brake |
Exhaust brake |
Steering |
|
Model/Type |
Recirculating ball-type steering,integrated power steering |
Cab |
|
Type |
Cab Over Engine, Front Tilting 44 Angle |
Suspension |
2-point hydraulic suspension |
Seats Type |
Mechanical suspension seat with 3-point seat belt |
Seating Capacity |
2 |
Dimensions |
|
Length (mm) |
7325 |
Wigth (mm) |
2490 |
Height (mm) |
2830 |
Wheel Base (mm) |
3800 + 1350 |
Min. Ground Clearance |
256 |
Front Overhang (mm) |
1,375 |
Rear overhang (mm) |
800 |
Suspension |
|
Front |
Semi-elliptic multi-leaf springs |
Rear |
Semi-elliptic, multi-leaf main springs with auxiliary springs |
Wheel |
|
Rim |
8.00-20 |
Wheel Type |
Stud- pilloted 10-hole steel disc |
Tyre size |
11.00-20R |
No.of Tyres |
11 |
Turning Radius (m) |
8.5 |
Frame |
|
Type |
Side Rails ,Punching & Riveted Construction |
Main Rail Section |
280x90x8 |
Elextrical & Lights |
|
Type |
Earth return system, negative earthed |
Battery (V/Ah) |
2 x 12V /150 |
Generator |
1200 W |
FAW J5M 220 Super Plus 6x2 Prime Mover Specifications
| Kerb Weight | - | No of Doors | 2 doors |
| Overall Height | 2830 mm / 9'4" feet | Overall Length | 7325 mm / 24'1" feet |
| Overall Width | 2490 mm / 8'3" feet | Wheel Base | 5150 mm / 16'11" feet |
| Ground Clearance | 256 mm / 0'11" feet |
| Cylinder Configuration | In Line | Displacement | 6557 cc |
| Engine Power | 220 @ 2300 | Fuel System | - |
| Torque | 770 @ 1400 | Valve Mechanism | - |
| Valves per Cylinder | - | Compression Ratio | - |
| Assembly | Imported | Warranty | 2 years or 120000 km |
| No of Cylinders | 6 | Fuel Grade | - |
| CO2 Emission | Euro II | Bore/stroke (mm) | 110x115 |
| Minimum Turning Radius | 8.5 m | Steering Type | Recirculating ball type steering, integr |
| Power Assisted | - | Steering Switch | - |
| Tire / Tyre Size | 11-00-20R | Wheel Size | 20 in |
| PCD | mm | Wheel Type | Stud pilloted 10 hole steel dis |
| Mileage City | 0 KM/LITER | Mileage Highway | KM/LITER |
| Fuel Tank Capacity | 400 L |
| Gearbox | 7-speed |
| Suspension | Front: Semi elliptic multi leaf, Rear: Semi elliptic multi leaf main spring with auxiliary spring | City driveability (20-80 kmph) | - |
| Top Speed | 90 KM/H | Drive Modes | - |
| Parking Sensors | - | Acceleration 0-100kmph | - |
| Headlights | - | Day Time Running Lights (DRL) | - |
| Brakes | Driving Brake, Parking Brake, Auxiliary Brake | Braking (100-0 kmph) | - |
| Braking (80-0 kmph) | - |
| Drive Type | Front/Four wheel drive | Drive Setup | Driver right |
| Brochure | Download | Waiting Time (Own) | - |
| Release Date | 28 December 2021 | Category | Work Related |
| Outer Door handle finish | - | Door Visor | |
| Multi Information Combination | - | Seats, Armrests & Door Lining Inserts | Mechanical suspension seat with 3 point seat belt |
| Interior Color | - | Insight Door Handles | - |
| AC Vent Knobs | - | Hand Brake Knob | - |
| Antenna | - | Inner Lights | - |
| Supervision Cluster / Driver Multi Information System | - |
| Sound System / Speakers | - | USB Charger | - |
| Infotainment / Funtainment System / Audio System | - | ||
| Axels | - | Licensed Weight | - |
